During circus loading of wider vehicles on commercial railcar, wheels can catch on hand hold rails that extended above the top of the deck on the sides of the flatcars. | | Be advised of above deck obstructions prior to circus loading when using commercial flatcars. Have drivers/spotters aware of hand holds that stick above the deck on the sides of flatcars for wider loads. Use commercial flatcars with hand holds for narrower vehicles to help avoid damage to vehicles during loading and unloading operations. | 8/30/2014 |
Unarmored wheeled vehicles that weigh over 40,000 lbs were secured with 3/8” chains. Chains were also not applied at 45 degrees. | | Unarmored wheeled vehicles are NOT permitted to use 3/8” chains once vehicles exceed 40,000 lbs according to AAR OTLRs Section 6 Figure 88B. IF the vehicle was 40,000 lbs, it would require 12 chains instead of the 8 chains shown. Additionally, the M1070 tractors shown have a specific page in TEA PAM 55-19, 6th Edition, page A-5 which states to use only 8 of the 1/2" chains. Additionally the chains need to be applied at 45 degrees per TEA PAM 55-19, page 4, Figure 2. | 8/30/2014 |
Door was not properly secured, swung open during rail transport and struck a bridge. | | This was primarily an issue with up-armored PLS and HEMTT vehicles but this occurred on an unarmored vehicles as well. A SDDC Customer Advisory (CA-12-05/07-0082) has been issued and recommends securing doors on retrograde vehicles with web straps. Web straps need to be at least 10,000 lbs breaking strength straps. Appears straps have worn on edges in route and failed and doors therefore open in route. Suggest using edge protectors on all edges when using straps. | 7/1/2014 |
Secondary Loads for rail transport are possible, but unlikely because many conditions need to be met. | | In general, there are four things to consider:
Has the vehicle or trailer been tested and approved to carry a payload for rail transport?
Is the secondary cargo or vehicle within the approved payload capacity of the vehicle or trailer?
Can the secondary cargo be adequately secured to the primary vehicle or trailer?
Is the load on the vehicle or trailer still within the transport envelopes required?
See the full article on secondary loads for more information. | 6/25/2015 |

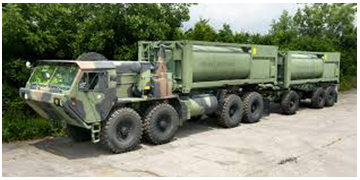

The HIPPO (Load Handling System Compatible Water Tank Rack System) does not have holes in the frame to allow it to accept the PLS/LHS (Palletized Load System/Load Handling System) transport pin. | | The HIPPO Water module is only approved to be rail transported when empty or full on a COFC (Container on Flatcar) or DODX railcar using the 20ft ISO locks.
- The HIPPO cannot be transported by rail while on a PLS/LHS truck or trailer.
- The HIPPO on PLS/LHS truck or trailer has not passed a rail impact test.
- The Program Office clarified that the HIPPO only has a requirement for rail transport on a COFC.
| 6/25/2015 |

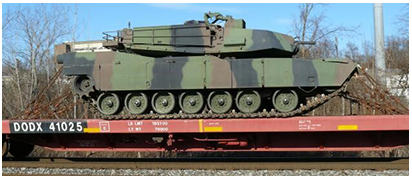

Tank skirts got loose, swung out, and damaged side train signals. | | - Replace six spring locking pins on the end of the skirt mounting pins with approved anti-pilferage seals.
- The approved anti-pilferage seals for purchase are identified as NSN 5340-01-260-9935 and cost roughly $2.00.
- Ensure vertical skirt hinge pins are present and secure.
- Ensure the bolt on the swing latch on skirt one is tensioned properly.
- See TMs 9-2350-264-20-1-1 or 9-2350-388-23-1-2 for more details.
More details can be found in this excerpt of the SDDCTEA Modal Instruction 55-19. | 6/25/2015 |
Recently trailers and towed howitzers have be lost off the side of the flatcars during circus loading. | | Below is the Railway Operations Safety Tips of the Month for March 2016. Also listed are the width specifications on railcars that are used to deploy our Soldiers.
Ensure a thorough safety brief is conducted and ensure all Soldiers understand the risk involved.
Ensure all drivers are certified and experienced on the equipment.
Ensure the last railcar is chalked to prevent movement.
Ensure spanners are properly positioned and secure.
Ensure there are a minimum of three ground guides present. One on the railcar ahead of movement and one on each side observing the spanners.
Never move a vehicle without ground guides present.
Ensure that the railcar is wide enough for the equipment being loaded.
If the prime mover is narrower than the towed equipment ensure that the spanners are repositioned to accommodate the wider equipment.
Railcar Widths:
DODX 40000’s - 10’ 5” or 10’ 3”
DODX 42000’s - 9’ 6” or 9’ 4”
DODX 41000’s - 10’ 6”
HTTX - 10’ 4” or 10’ 6”
ITTX - 9’ 0”
TTX - 10’ 4” or 10’ 6”
TTDX - 8’ 6” or 9’ 0”
| 3/31/2016 |

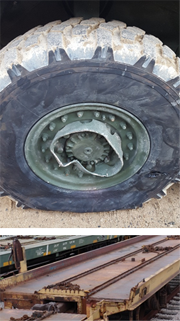

Improper spotting of flatcars caused wheel damage to military vehicles. Commercial flatcars can have above deck obstructions (side rub rails, raised hand holds, etc.) that need to be accounted for when planning a rail movement. Commercial flatcars that were ordered for lighter/smaller vehicles but where improperly spotted close to the rail loading ramp and numerous vehicles were damaged rolling over these narrower cars with side rub rails. | | The narrower flatcars can be spotted together behind one ramp. If that is not practical, the narrow cars can be spotted the farthest away from the rail loading ramp. Wider flatcars without obstructions should be next to the ramp. MI 55-19, 7th Edition states under Section XII. Practical Tips: D. Ramp Spotting Guidelines for Loading 3. Some commercial flatcars have side sills, handholds, and so forth, that project above the deck. These hinder loading and may prevent loading these flatcars with central tire inflation system (CTIS) vehicles. Flatcars without projections above the deck should be placed next to the ramp, so that CTIS vehicles can be loaded on them without being damaged.
| 2/28/2017 |

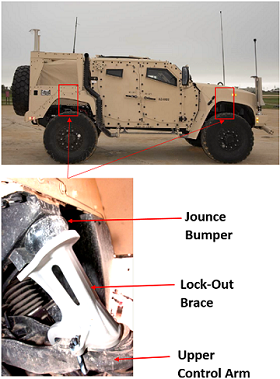

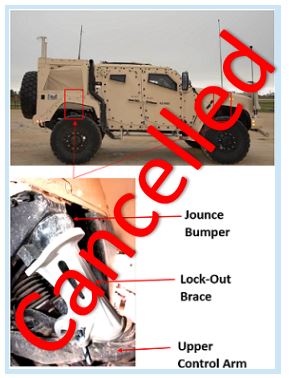

The JLTV suspension lock-out braces shall no longer be utilized. | | As of January 2021 the JLTV NO LONGER requires suspension lock-out braces between the upper control arms and the jounce bumpers at each corner of the vehicle suspension (4 total) prior to tiedown for rail transport. These Lock-Out braces should not be used for rail transport as further testing has shown that the JLTV can be transported safely without the brace. Four 1/2 inch chains are required for JLTV's up to 17,500 lbs and eight 1/2 inch chains are required for JLTVs over 17,500 pounds. Refer to Open Top Loading Rules, Section 6, Figure 88K for more details: https://my.aar.org/OTLR/Documents/Section%206/Section6p2Fig88-K_20210323.pdf | 8/28/2019 |
HMMWVs
being tied down using tow hooks for

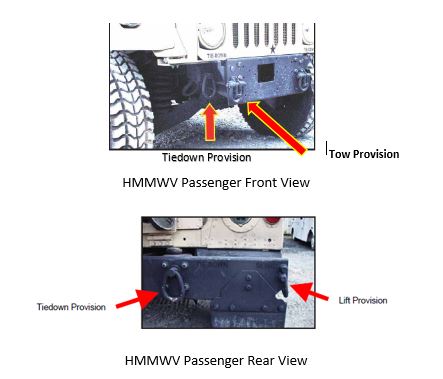

tiedown provisions instead of the pear-shaped provisions. | | The HMMWV has front pear-shaped tiedown provisions located behind the front bumper used to secure the vehicle for transport. There are older HMMWVs still in the field that do not have these pear-shaped tiedown provisions. For those older HMMWVs, use the tow hook for tiedown securement. If the pear-shaped provision is on the vehicle, use it for tiedown securement. The misuse of the tow hook is a common mistake when affixing chains on HMMWVs that are shipped out of installations and a quick check behind the bumper can save rework time for the tiedown crew. Caution: If the tow provisions are used for rail transport, the provisions may deform or become damaged. The HMMWVs rear pear-shaped tiedown provisions are located on the rear bumper, but should not be confused with the rear lift provisions. The lift provisions are located on the side of the bumper as shown and are not used for tiedown. | 9/24/2021 |
M967A2

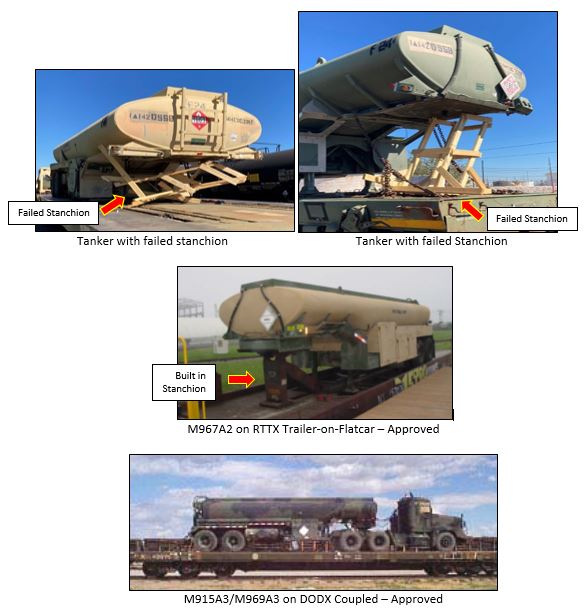

and M969A3 5,000 gallon Fuel Semitrailers utilizing wood stanchions have failed during rail transport. When
the wood stanchion fails, it causes the chains to go slack resulting in a
dangerous load that is unsecured on the railcar. If the train operators notice this happening,
the train is stopped until the load is secured properly. | | The 5,000-gallon Fuel Tanker Semitrailers are not approved for transport with wood stanchions. The M967A2 and M969A3 are approved for rail transport coupled to a prime mover tractor or in a trailer-on-flatcar (TOFC) coupled to the center of the rail car's stanchion configuration. Wood stanchions are NOT approved for use on steel deck railcars since wood stanchions cannot be nailed down and secured to steel deck cars. The wood stanchions therefore can shift and come free from the railcar. Approved and tested trailer landing legs or TOFCs are needed to support uncoupled trailers for rail movement. With the tanker coupled to a prime mover, utilize 12 chains on a full trailer, 3 for each provision. If the trailer is empty, utilize 8 chains on the trailer, 2 for each provision. Use 8 chains total to secure the prime mover 2 for each provision, whether the trailer is full or empty. When the fuel semitrailer is shipped TOFC, it is secured by locking the kingpin into the fifth-wheel assembly of the railcar with no chains. The fuel semitrailer cannot exceed 39,150 pounds in order to use a TOFC. If the tanker is be transported with fuel then the tanker must have a Federal Railroad Administration (FRA) Approval per Title 49 Code of Federal Regulations (CFR) 174.61 and 174.63. If there are questions regarding the tiedown of military equipment, please contact SDDC TEA. | 10/6/2021 |
