On-Street Parking Layout

On-Street Parking Layout

There are two types of stalls to consider when designing on-street parking: the end stall and the interior stall.

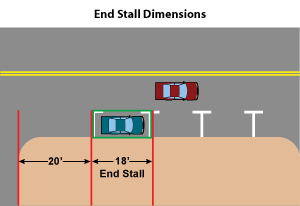

End StallsEnd Stall Dimensions

An end stall is used where a vehicle can be driven directly into or out of the parking space. Per UFC 3-201-01, the minimum length for the first and last stall is 20 feet. Maintain a minimum of 20 feet between an end stall and a crosswalk opening or sidewalk edge of an intersection. Signalized and all-way STOP-controlled intersections require greater distances, typically 30 feet or more between an end stall and an intersection.

Interior Stall length

Interior Stalls

An interior stall requires room for maneuvering into and out of the space. Per UFC 3-201-01, the minimum length for each interior stall is 22 feet.

Parking Space Dimensions from Crosswalks

Parking Space Dimensions from Crosswalks

Parking Space Dimensions from Midblock Crosswalks

Parallel parking stalls should be defined by white lines extending perpendicular from the curb, for a distance of 8 feet. Generally, end stall lines are L-shaped and interior stall lines are T-shaped.

Paralell parking stalls sgiykd ve defined by white lines extending perpendicular from the curb, for a distance of 8 feet.
